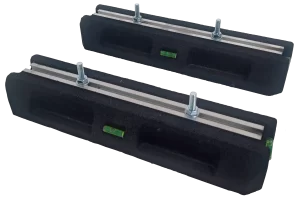

1 Set: Heavy-duty adjustable ground mounting set, installs directly onto concrete or can be left unmounted. Adjustable wide frame fits most units. Includes built-in leveler tool to assist with mounting. Size: 19.6 x 5 x 2.5 in.

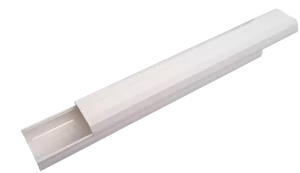

6 pcs. Universal: Fits most brands of residential central air conditioner and mini-split systems. Made from high-quality PVC, suitable for any weather and long-term outdoor use. The decorative PVC line cover keeps refrigeration pipes and cores organized, and protects your AC lines from fading, cracking, or deforming. Size: 4 x 2.5 x 72 in Color: White

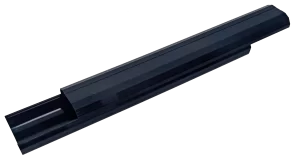

6 pcs. Universal: Fits most brands of residential central air conditioner and mini-split systems. Made from high-quality PVC, suitable for any weather and long-term outdoor use. The decorative PVC line cover keeps refrigeration pipes and cores organized and protects your AC lines from fading, cracking, or deforming. Size: 4 x 2.5 x 72 in Color: Black

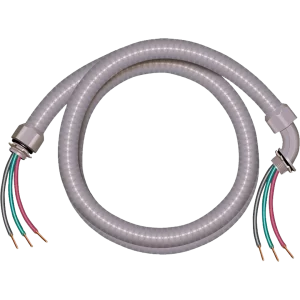

6 Sets: 3/4 in. x 6 ft. 8/2 and 10/1 Non-Metallic Flexible Liquidtight A/C Electrical Whip with durable conduits designed for connecting HVAC units to power sources. Crafted with non-metallic materials, they ensure safety, easy installation, and resistance to corrosion, providing reliable performance in various weather conditions.

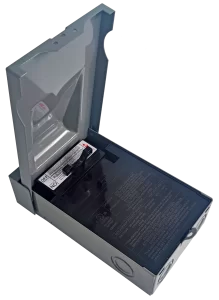

6 pcs. Enclosed Non-Fused: Air conditioning disconnects for residential and light commercial applications. Features a metallic enclosure, ensuring durability against harsh weather conditions for sustained performance. Mian Amperage Rating: 60A, 240V, 1 Phase, 2 Pole, 3 Wire HP Rating: 240V, STD 3, Max 10

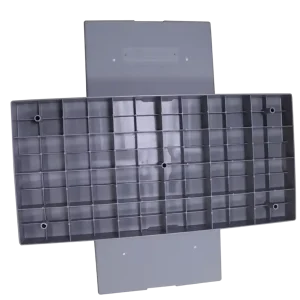

Anti-slip and Shock-absorbing Base for stabilizing load and avoiding shaking. Uniform ribbing transfers load evenly, and its thickened material is not easily deformed. UV protected and weather-resistant. Size: 38 x 18 x 3 in.

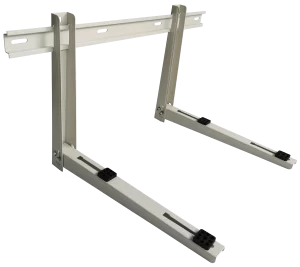

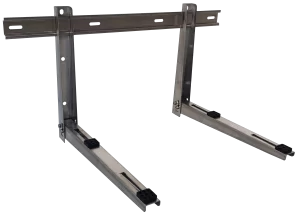

4 Sets: Versatile Outdoor Wall Mounting Bracket for Ductless Mini Split Heat Pump Systems Adjustable to fit 9,000 BTU – 36,000 BTU units with a maximum weight of 550 lbs. Vibration control and shock absorbers are built-in. Adjustable backstops. Foldable design with all necessary hardware included. Dimensions: 21.6 × 17.7 × 33.4 in.
4 sets Versatile Outdoor Wall Mounting Bracket for Ductless Mini Split Heat Pump Systems Adjustable to fit 9,000 BTU – 36,000 BTU units with maximum weight of 550 lbs Vibration control and shock absorbers are built-in backstops are adjustable Foldable design with all necessary hardware included 21 6 x 17 7 x 33 4 in

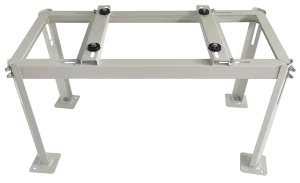

3 Sets, Zinc-Coated Steel Ground Stand Bracket: Compatible with most mini split heat pump systems. Supports over 330 lbs and can be easily placed outside your home or business. Weatherproof design ensures long-lasting support. Dimensions: 39.3 × 23.6 × 15.75 in.

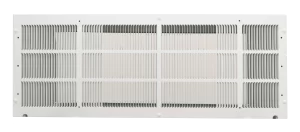

Exterior Architectural Grille for PTAC Units Protects the coils at the back of your PTAC unit, helping to maintain proper airflow into and out of the unit. Standard size fits most PTAC units. Dimensions: 41.5 × 15.75 × 0.5 in.

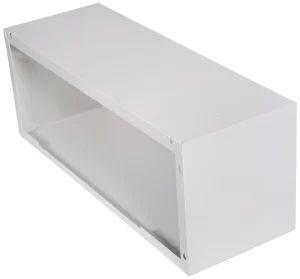

PTAC Foldable Metal Wall Sleeve Designed specifically for traditional PTACs. This wall sleeve is insulated for thermal efficiency and noise reduction. The white powder coating is made of galvanized zinc-coated steel for exceptional durability. Condensate drain kit is included. Dimensions: 42 × 14.8 × 17.5 in.

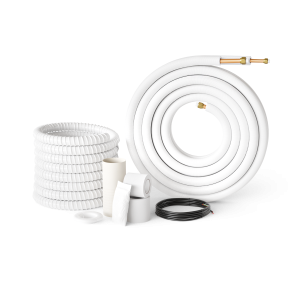

The HVAC Line Set Installation Kit is a complete solution for efficient air conditioning installation. It includes a 4/16 AWG connecting cable, rubber drain hose, bandage tape, wall sleeve, and neoprene for durability and convenience. The copper line set is 99.9% pure (ASTM B-280), ensuring optimal performance and reliability. Pre-insulated (ASTM D154) for energy efficiency, it is UV and UV-C protected to withstand outdoor elements. Pre-flared ends simplify connections, making installation faster and hassle-free. This comprehensive kit provides the quality and reliability needed for a smooth HVAC setup, ensuring long-lasting performance.
| Line Set Model | Line Set Diameter Liquid/Gas Side |
Copper Line Length | 4/16 AWG Cable |
|---|---|---|---|
| AB1-16FT | 1/4" - 3/8" | 16 FT | 18 FT |
| AB1-25FT | 1/4" - 3/8" | 25 FT | 29.5 FT |
| AB1-50FT | 1/4" - 3/8" | 50 FT | 55.8 FT |
| AB2-16FT | 1/4" - 1/2" | 16 FT | 18 FT |
| AB2-25FT | 1/4" - 1/2" | 25 FT | 29.5 FT |
| AB2-50FT | 1/4" - 1/2" | 50 FT | 55.8 FT |
| AB3-16FT | 3/8" - 5/8" | 16 FT | 18 FT |
| AB3-25FT | 3/8" - 5/8" | 25 FT | 29.5 FT |
| AB3-50FT | 3/8" - 5/8" | 50 FT | 55.8 FT |
| AB4-25FT | 3/8"-3/4" | 25 FT | 29.5 FT |
| AB4-50FT | 3/8"-3/4" | 50 FT | 55.8 FT |
| AB6-25FT | 3/8" - 7/8" | 25 FT | 29.5 FT |
| AB6-50FT | 3/8" - 7/8" | 50 FT | 55.8 FT |
| AB7-25FT | 1/4" - 5/8" | 25 FT | 29.5 FT |
The ARMBRIDGE brand was born and established to deliver high-quality HVAC accessories to the market.
With over 35 years of industry expertise, our team has been instrumental in creating some of the
most significant HVAC brands globally. ARMBRIDGE stands out as an exceptional solution, offering
top-notch HVAC accessories tailored for Distributors,
Contractors, and Technicians across the United
States.
Strategically located warehouses nationwide and a dedicated technical support team enable us to
ensure superior product quality and unparalleled customer service.
At ARM
BRIDGE, we extend an “arm” to support our partners, serving as a bridge that connects them
to the best solutions-and we always go the extra mile.
